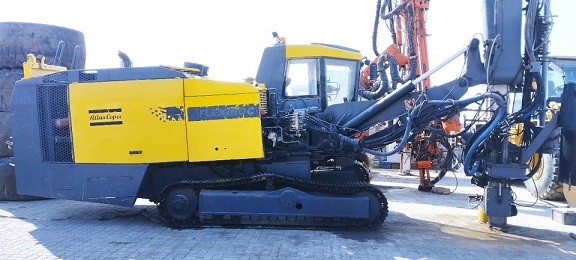

Atlas Copco FlexiROC D60 Rock Drill 2015 (Sweden)

For Sale: Atlas Copco FlexiROC D60 (2015 Model) – High-Performance Surface Drill Rig

The Atlas Copco FlexiROC D60 is a top-tier surface drilling rig designed for efficient performance in tough quarrying and mining applications. Renowned for its reliability, this versatile machine is well-suited for drilling operations with hole diameters ranging from 110 mm to 178 mm (4.3" to 7"). The FlexiROC D60 is designed to deliver excellent down-the-hole (DTH) drilling efficiency, making it a key player for large-scale projects in both mining and quarrying sectors.

Overview of the FlexiROC D60

The FlexiROC D60 is a powerful drilling rig built for maximum productivity and flexibility. It features a CAT C15 turbo-charged diesel engine, available in both Tier 3 and Tier 4 Final/Stage 5 configurations to meet modern emissions standards. Whether you’re working on open-pit mining sites or large quarries, the FlexiROC D60 provides robust drilling power, precision, and versatility.

This drill rig is highly capable, with multiple drilling angle options and superior control systems that allow for easy and efficient operation. The ROPS and FOPS-certified cabin ensures operator safety and comfort, while the rig’s intelligent design guarantees high-performance drilling, shift after shift.

Important Note Regarding Specifications

Please be aware that product specifications may vary depending on the country of sale or usage due to local regulations or customization requirements. The specifications listed below are general. Contact us for detailed information regarding regional variations.

Key Features of the FlexiROC D60

1. Impressive Drilling Range:
   The FlexiROC D60 offers a hole diameter range of 110 mm to 178 mm (4.3" to 7"), making it versatile for various applications including production, pre-splitting, and grade control.
2. Powerful Engine Options:
   Equipped with a CAT C15 turbo-charged diesel engine, the rig is available with both Tier 3 and Tier 4 Final/Stage 5 options, meeting global emissions regulations while delivering reliable power at 475 HP (354 kW).
3. High-Pressure Air Compressor:
   The rig features an Atlas Copco XRX 10 two-stage screw compressor capable of providing a working pressure of up to 25 bar (363 psi) and a free air delivery (FAD) of 405 l/s (858 cfm), ensuring that the holes are kept clean and ready for charging.
4. Hydraulic Tube Handling System:
   The FlexiROC D60 includes a hydraulic tube handling system capable of handling tube lengths up to 5 m (16.4') for standard feed and 6 m (20') for long feed, with maximum hole depths of 45 m (148') and 55.5 m (182') respectively.
5. Ergonomic Operator Cabin:
   The ROPS and FOPS-approved cabin is equipped with air conditioning and heating, ensuring operator comfort in various environments. The cabin also features laminated glass windows, vibration dampers, and a fully adjustable seat for an ergonomic working experience.
6. Automation and Control:
   The FlexiROC D60 is designed for smooth operation with high levels of automation. The rig features electric inclination instruments, a hole depth indicator, and optional GPS-based aiming systems to ensure precision drilling and high productivity.

Technical Specifications (General)

• Hole Diameter Range: 110 mm to 178 mm (4.3" to 7")
• Engine:
  • CAT C15 turbo-charged diesel engine
  • Power Output: 475 HP (354 kW) at 1800 rpm
  • Available in Tier 3 or Tier 4 Final/Stage 5 emissions standards
• Compressor:
  • Atlas Copco XRX 10 two-stage screw type
  • Working Pressure: 25 bar (363 psi)
  • Free Air Delivery (FAD): 405 l/s (858 cfm)
• Drill Tubes:
  • Standard Feed: 5 m (16.4') tubes, max depth of 45 m (148')
  • Long Feed: 6 m (20') tubes, max depth of 55.5 m (182')
• Drilling Feed Options:
  • Single Pass Drilling: Max length of 5.4 m (18') for standard feed and 7.5 m (25') for long feed
• Weight:
  • 22,600 kg (49,820 lbs) for standard feed (Tier 3)
  • 23,700 kg (52,250 lbs) for long feed (Tier 3)
  • 23,000 kg (50,700 lbs) for standard feed (Tier 4)
  • 24,100 kg (53,130 lbs) for long feed (Tier 4)
• Hydraulic System:
  • Axial piston and gear pumps delivering a total hydraulic flow of 240 l/min (63 gal/min)
  • Hydraulic oil cooler designed to operate in ambient temperatures up to 50°C (122°F)

Applications of the FlexiROC D60

1. Quarrying and Mining:
   The FlexiROC D60 is ideal for large-scale drilling operations in quarries and open-pit mines. Its DTH drilling performance and robust compressor allow it to deliver straight, clean holes in a variety of rock formations.
2. Pre-Splitting and Production Drilling:
   With its precision drilling capabilities, this rig is well-suited for pre-splitting tasks in mining, ensuring controlled blasting and minimizing overbreak.
3. Grade Control and Dewatering:
   The FlexiROC D60 can be equipped for reverse circulation (RC) drilling, making it useful for in-pit grade control and dewatering applications.

Why Choose a Used Atlas Copco FlexiROC D60 (2015 Model)?

1. Cost Savings:
   Investing in a used 2015 FlexiROC D60 gives you access to high-performance technology at a fraction of the cost of a new unit, without sacrificing reliability.
2. Built to Last:
   Atlas Copco (now Epiroc) is known for building rugged, dependable equipment. The FlexiROC D60 is designed for harsh conditions, ensuring consistent performance even in the toughest drilling environments.
3. Multi-Task Capability:
   The FlexiROC D60 is a versatile machine, capable of handling a wide range of drilling applications with ease. Its ability to work across different angles and depths makes it an invaluable addition to any fleet.

Conclusion

The Atlas Copco FlexiROC D60 (2015 model) is a powerful, efficient, and flexible drilling rig designed for demanding quarrying and mining operations. With its robust features and impressive specifications, this rig offers excellent value for operators looking for a reliable and productive solution.

Contact us today to learn more or to schedule an inspection of this machine.
